AS1072 Aerospace Firesleeve
AB Tech Group is your one-source for high temperature and
fire protection aviation firesleeve and other tapes & fabrics
for aviation & aerospace use.
- Protects hydraulic, fuel and oil lines, cables & wires
- Meets the specifications of AS1072 for hose assembly protection
AB Tech Group is your one-source for high temperature and
fire protection aviation firesleeve and other tapes & fabrics
for aviation & aerospace use.
- Protects hydraulic, fuel and oil lines, cables & wires
- Meets the specifications of AS1072 for hose assembly protection

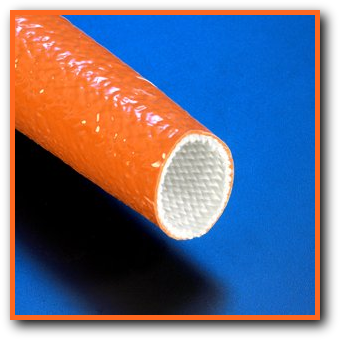

SAE AS1072-SIL-FG Aviation Firesleeve
Almost every aviation engine - turbine, turboprop or piston; civilian and military - uses firesleeve to protect critical hoses and wiring in the event of an engine compartment fire. Even NASA's shuttle engines use it.
Our firesleeve meets the specifications of SAE AS1072E, allowing qualified hose assemblies to pass the fire resistance testing specification of AS1055D.
It may be used for all fuel, oil, hydraulic, fire extinguisher and prop feathering lines. "Fire-proof" hose lines, as defined by the FAA, must withstand a direct flame for fifteen minutes under specified flow conditions without failure. Fire-resistant lines must withstand a 5 minute exposure under these conditions.
Fire-proof hose lines are obtained when the proper hose, clamps, fittings and Firesleeve is selected and properly assembled.
Meets the requirements of FAA TSO - C53a and TSO - C75.
It may be used for all fuel, oil, hydraulic, fire extinguisher and prop feathering lines. "Fire-proof" hose lines, as defined by the FAA, must withstand a direct flame for fifteen minutes under specified flow conditions without failure. Fire-resistant lines must withstand a 5 minute exposure under these conditions.
Fire-proof hose lines are obtained when the proper hose, clamps, fittings and Firesleeve is selected and properly assembled.
Meets the requirements of FAA TSO - C53a and TSO - C75.
Aviation / Aerospace
AS1072 Firesleeve
AS1072 Firesleeve
Substrate Technical Specifications
Fiber Type: E Glass
Specific Gravity: 2.54-2.69
Breaking Tenacity: 1.71 gf/TEX. Std. 1.71 gf/TEX Wet
Effect of Heat: Will not burn; Retains 75% tensile at 343°C / 649°F;
Softens at 732-877°C / 1349-1610°F-; Melts at 1121-1182°C / 2049- 2159°F
Tensile Strength: 450,000-500,000 psi.
Effect of Acids and Alkalis; Resistance to acids is fair. Good resistance to most alkalis.
Breaking Elongation: 4.81% Std. 4.81% Wet
Elastic Recovery: 100%
Effect of Bleaches and Solvents: Unaffected
Average Stiffness: 2824.3 cn/TEX
Fiber Type: E Glass
Specific Gravity: 2.54-2.69
Breaking Tenacity: 1.71 gf/TEX. Std. 1.71 gf/TEX Wet
Effect of Heat: Will not burn; Retains 75% tensile at 343°C / 649°F;
Softens at 732-877°C / 1349-1610°F-; Melts at 1121-1182°C / 2049- 2159°F
Tensile Strength: 450,000-500,000 psi.
Effect of Acids and Alkalis; Resistance to acids is fair. Good resistance to most alkalis.
Breaking Elongation: 4.81% Std. 4.81% Wet
Elastic Recovery: 100%
Effect of Bleaches and Solvents: Unaffected
Average Stiffness: 2824.3 cn/TEX
Silicone Rubber Technical Specifications
Durometer, Shore A: Initial; 35 Aged 240 hours @ 200°C; 45
Tensile Strength (psi): Initial; 875 Aged 240 hours @ 200°C; 800
Elongation %: Initial; 500 Aged 240 hours @ 200°C; 200
Flammability, UL94; V-1
Dielectric Strength (volts/mil); 485
Coating Thickness
AS1072 Specification: Minimum: .03" (0.8mm)
Nominal average measured 10 locations over 12" length: .05"
Fluid Resistance
Phosphate Ester hydraulic fluids
MIL-H-5606 hydraulic fluid
MIL-T-5624 Jet Fuel
MIL-L-6082 lubricating oil
MIL-L-7808 lubricating oil
MIL-L-23699 lubricating oil
MIL-H-83282 hydraulic fluid
Durometer, Shore A: Initial; 35 Aged 240 hours @ 200°C; 45
Tensile Strength (psi): Initial; 875 Aged 240 hours @ 200°C; 800
Elongation %: Initial; 500 Aged 240 hours @ 200°C; 200
Flammability, UL94; V-1
Dielectric Strength (volts/mil); 485
Coating Thickness
AS1072 Specification: Minimum: .03" (0.8mm)
Nominal average measured 10 locations over 12" length: .05"
Fluid Resistance
Phosphate Ester hydraulic fluids
MIL-H-5606 hydraulic fluid
MIL-T-5624 Jet Fuel
MIL-L-6082 lubricating oil
MIL-L-7808 lubricating oil
MIL-L-23699 lubricating oil
MIL-H-83282 hydraulic fluid
AS1072 Firesleeve Withstands 500°F / 260°C
continuous exposure; 2200°F / 1205°C for
periods up to 15 minutes and short
excursions to 3000°F / 1650°C.
continuous exposure; 2200°F / 1205°C for
periods up to 15 minutes and short
excursions to 3000°F / 1650°C.
Our AS1072 Firesleeve is
Premium Quality Grade - after all, we fly too!
Premium Quality Grade - after all, we fly too!
|
Firesleeve Part Number Cross Reference Guide PJA / 2650 / AE102 to S-AS1072 Aerospace SAE AS1072E Grade |
|||||
|
Inside Diameter inches / mm / dash code |
Firesleeve Part Number |
Our Part Number |
Price per Foot |
||
| 1/4 / 6 / -4 |
PJA-04 4001000610S |
S-AS1072-04 | $ 3.54 | ||
| 3/8 / 10 / -6 |
PJA-06 4001001010S |
S-AS1072-06 | $ 3.86 | ||
| 1/2 / 13 / -8 |
PJA-08 2650-8 AE102-8 4001001310S |
S-AS1072-08 | $ 4.62 | ||
| 5/8 / 16 / -10 |
PJA-10 2650-10 AE102-10 4001001610S |
S-AS1072-10 | $ 5.13 | ||
| 3/4 / 19 / -12 |
PJA-12 2650-12 AE102-12 4001001910S |
S-AS1072-12 | $ 5.87 | ||
| 7/8 / 22 / -14 |
PJA-14 2650-14 AE102-14 4001002210S |
S-AS1072-14 | $ 6.96 | ||
| 1 / 25 / -16 |
PJA-16 2650-16 AE102-16 4001002510S |
S-AS1072-16 | $ 7.90 | ||
| 1 1/8 / 29 / -18 |
PJA-18 2650-18 AE102-18 4001002910S |
S-AS1072-18 | $ 8.93 | ||
| 1 1/4 / 32 / -20 |
PJA-20 2650-20 AE102-20 4001003210S |
S-AS1072-20 | $ 9.55 | ||
| 1 3/8 / 35 / -22 |
PJA-22 2650-22 AE102-22 4001003510S |
S-AS1072-22 | $ 9.63 | ||
| 1 1/2 / 38 / -24 |
PJA-24 2650-24 AE102-24 4001003810S |
S-AS1072-24 | $ 9.90 | ||
| 1 5/8 / 41 / -26 |
PJA-26 4001004110S |
S-AS1072-26 | $ 10.05 | ||
| 1 3/4 / 44 / -28 |
PJA-28 4001004510S |
S-AS1072-28 | $ 12.85 | ||
| 1 7/8 / 48 / -30 |
PJA-30 4001004810S |
S-AS1072-30 | $ 14.99 | ||
| 2 / 51 / -32 |
PJA-32 4001005110S |
S-AS1072-32 | $ 17.85 | ||
| 2 1/4 / 57 / -36 |
PJA-36 4001005710S |
S-AS1072-36 | $ 20.54 | ||
| 2 1/2 / 64 / -40 |
PJA-40 4001006410S |
S-AS107240 | $ 23.21 | ||
| 2 5/8 / 67 / -42 |
PJA-42 4001006710S |
S-AS1072-42 | $ 26.26 | ||
| 2 3/4 / 70 / -44 |
PJA-44 4001007010S |
S-AS1072-44 | $ 26.89 | ||
| 2 7/8 / 73 / -46 |
PJA-46 4001007310S |
S-AS1072-46 | $ 30.56 | ||
| 3 / 76 / -48 |
PJA-48 4001007610S |
S-AS1072-48 | $ 32.39 | ||
| 3 1/4 / 83 / -52 |
PJA-52 4001008310S |
S-AS1072-52 | $ 32.91 | ||
| 3 1/2 / 89 / -56 |
PJA-56 4001008910S |
S-AS1072-56 | $ 35.13 | ||
| 3 3/4 / 95 / -60 |
PJA-60 4001009510S |
S-AS1072-60 | $ 35.89 | ||
| 4 / 102 / -64 |
PJA-64 4001010210S |
S-AS1072-64 | $ 37.21 | ||
